妙用与详细资料：/Purpose and introduction

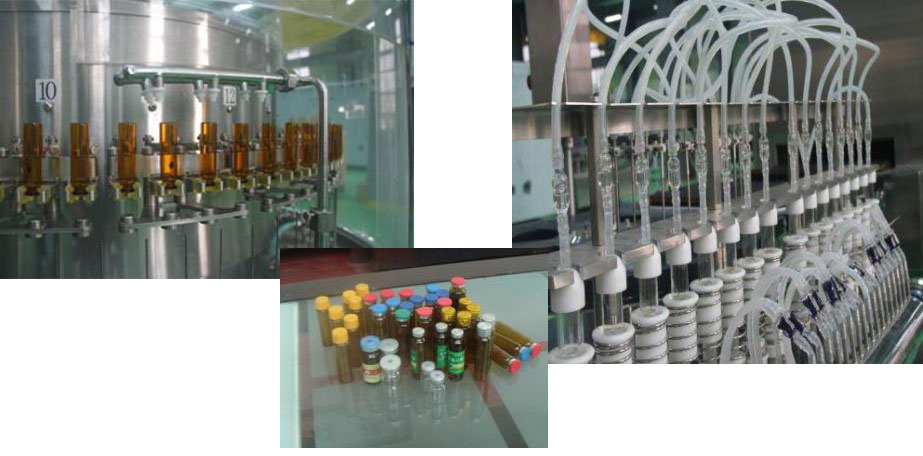

服用方式液洗烘灌轧三级联调线由双面mri波洗瓶机、隧道施工式热气 配置过滤除菌干燥箱、服用方式液分装轧盖机等成分，好于 5-30ml 等有所差异规 格服用方式液瓶的工作加工。可到位对产品工作加工中安瓿瓶淋水、mri波擦洗、冲水、充 气、烤干过滤除菌、降温、分装、轧盖等施工工艺方法步骤的三级联调操作。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

特殊性:/characteristic

◆洗瓶机使用机诫手夹瓶，适于多的规格的瓶里；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶按照气水喷针反复跟踪软件放入方案，洗感觉好，业绩电力能源。并设置针架防运动试验装置，的提升喷针放入瓶盖的精确度，缩短断针現象情况；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶大部分水汽管线、喷针全部单独的分类建立，制止了交叉式被污染的，符合需要GMP原则需要；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶丝杆前加裝保养块，有保养丝杆，才能减少碎瓶的功效Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶选用整体风格进品微信同步带，相连接拨块输料口服药液，正常运作安稳安全In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆恒温干燥箱选用红外线热处理加导散热器，不锈钢圆管热处理加导散热器多层热处理加温温度表均匀的性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆包装轧盖机要选配陶瓷制品泵、冷库保温隔热板的表层泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装线无瓶止灌，无瓶不轧盖功能性。Pieces filling without bottle filling, no bottle no rolling function.◆整线应用PLC总掌控、变频柜器、触控屏掌控技术水平，正常运作相对稳定稳定正规。触控屏可信息提示各电脑单机的正常运作睡眠的情形，各掌控点的出水量、气压表、风速、热度等信息提示，各启闭睡眠的情形和报警信息提示，报警个人物理诊断和报警解析及排除故障措施。使另一种植流程做到自己化掌控，联线含有三机测控动平衡机平衡装置，提高种植稳定稳定正规。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.不同雇主的必须要，还可供加配：According to the needs of customers, but also available for selection:◆西门子PLC、施耐德开关、三菱PLC、台达等产品品牌有效系统设计化；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气压为、温度及超声清洗波屈服强度、灰尘塑料再生颗粒、风力在线播放加测、报警器、计录、缩印系統。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、灭菌防护器控制系统。Mixer ORABS, CRABS, aseptic isolator system.

高技术指标：technical parameters

选用品种Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
装罐误差Filling accuracy(%)	≤ ± 2.5
包装头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖良好率率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
